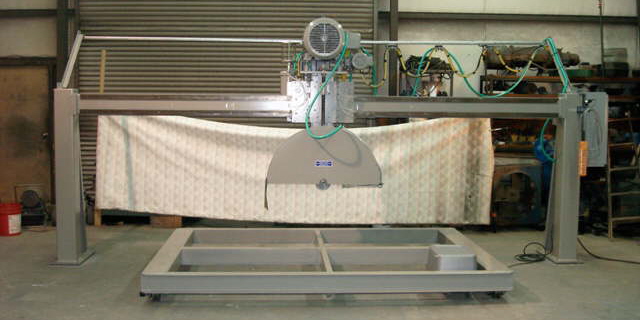

Granite Saw Post Type JM8P

Granite Saw Post Type JM6P

      JM8P Post Type Granite Saw specifications:

      1. To carry a 36 diamond blade with 36 blade guard.
      2. 20 of raise and lower
      3. Arbor shaft size is 2 3/16 with 6 flanges
      4. Travel of blade carriage to be automatic with A.C. variable control.
      5. Travel of blade to make 12 cut.
      6. Rail constructed of 8 x 8 x 3/8 square tube.
      7. CF strips to be bolted on top, bottom, and sides of rail for wear strips.
      8. Carriage constructed of 3/4 and 1 steel plate and adjustable 4 CF roller bearing on top with plastic slides on sides and bottom.
      9. Main motor is a 30 HP

      Saw Frame: Posts: (2) 8 Square tube with 3/4 base plates

      Motorized Cart Specifications:
      1. Cart dimensions are 6-6 x 10-6
      2. Constructed of 6 square tube and 6 channel.
      3. (4) 6 V wheels
      4. (8) 1 7/16 P.B. bearings and 13 of 1 7/16 CRO.
      5. Cart track is x 4 HF flat and x 2 x 2 angle iron

      Options:
      1. Power cart controlled by push button with variable speed
      2. Safety switches on carriage.
      3. Panel with auto step cutting feature.
      4. Laser Light
      5. Truck Freight

      Total price of Saw with options:

      Terms: 50% Down
                   45% upon completion
                     5% 30 days after install
